Description

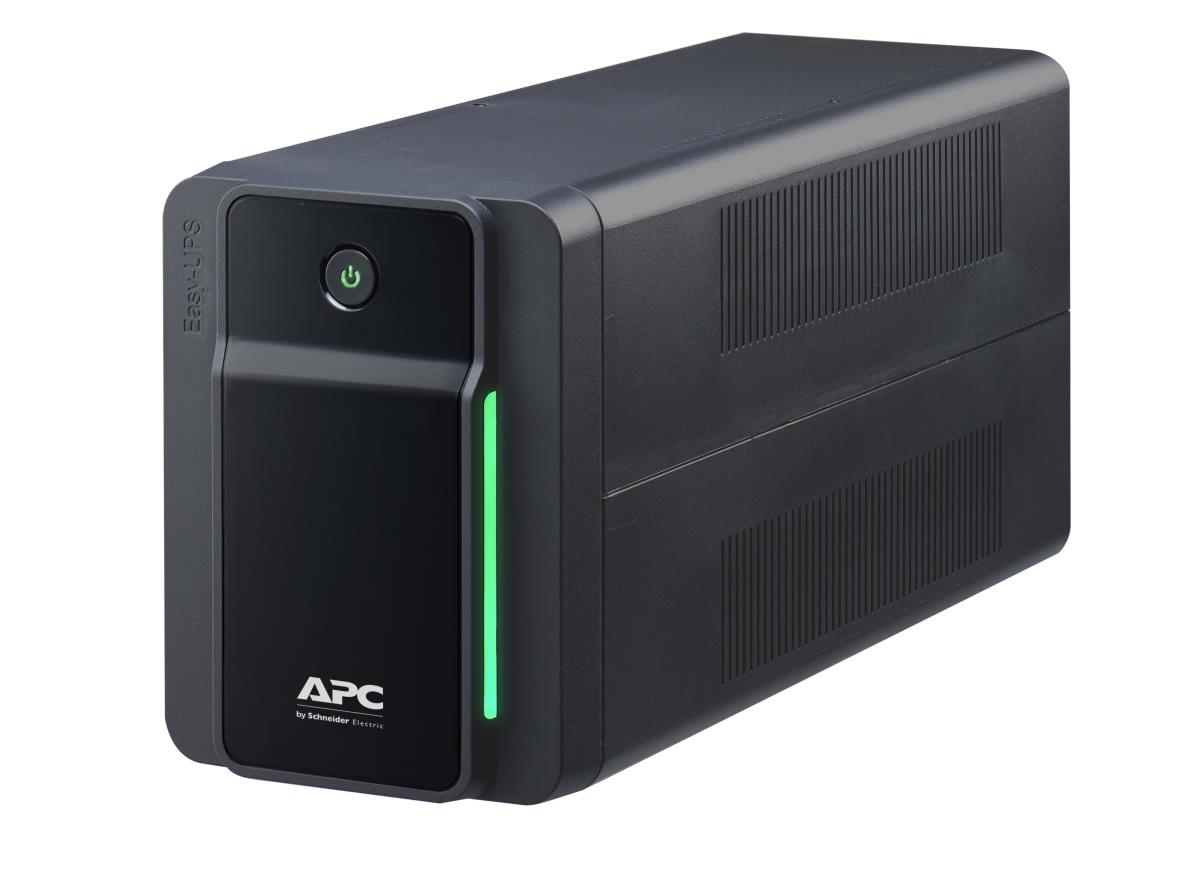

APC Back-UPS 700VA, 230V, AVR, IEC Sockets
Battery Backup & Surge Protector for Electronics and Computers
Includes: User Manual
APC Back-UPS 700VA 230V AVR IEC Sockets
Key Features:
- Run time for load – 390w
- Max. Capacity Used -100%
- Output power capacity – 390Watts / 700VA
- Output Connections –
(1) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
- Nominal Output Voltage –230V
- Nominal Input Voltage – 230V
- Input Connections – IEC-320 C14
- Cord Length – 1.22meters
Additional information
| Weight | 6.5 kg |
|---|---|
| Max Configurable Power (Watts) | 390Watts / 700VA |
| Output Frequency (sync to mains) | 50/60 Hz +/-1 Hz |
| Topology | Line Interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 4ms typical |
| Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input voltage range for main operations | 140 – 300V |
| Number of Power Cords | 1 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 6hour(s) |
| Replacement Battery | Replaceable |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Volt-Amp-Hour Capacity | 84 |
| Interface Port(s) | USB |
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 273Joules |
| Data Line Protection | RJ-11 Modem/Fax/DSL protection (two-wire single line) |
