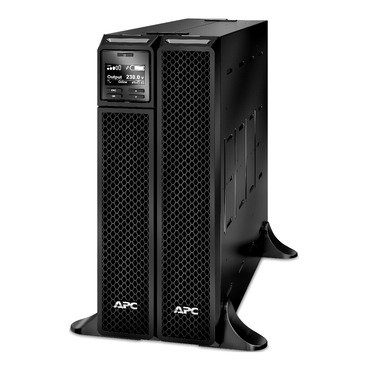

APC Smart-UPS SRT 3000VA 230V

Key Features

  • Output power capacity – 2.7kWatts / 3.0kVA
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    (2) IEC 320 C19 (Battery Backup)
  • Nominal Output Voltage – 230V
  • Nominal Input Voltage – 230V
  • Input Connections – British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • Cord Length – 2.44meters
Compare

Share this product

Description

APC Smart-UPS SRT 3000VA 230V

  • High density, double-conversion on-line power protection with scalable runtime

  • Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Brand

APC

Additional information

Weight 36.74 kg
Color

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Bypass

Internal Bypass (Automatic and Manual)

Input frequency

40 – 70 Hz (auto sensing)

Input voltage range for main operations

160 – 275V

Input voltage adjustable range for mains operation

100 – 275 (half load)V

Number of Power Cords

3

Other Input Voltages

220, 240

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Nominal Battery Voltage

96V

Replacement Battery

Replaceable

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

505

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge energy rating

340Joules

Filtering
