Description

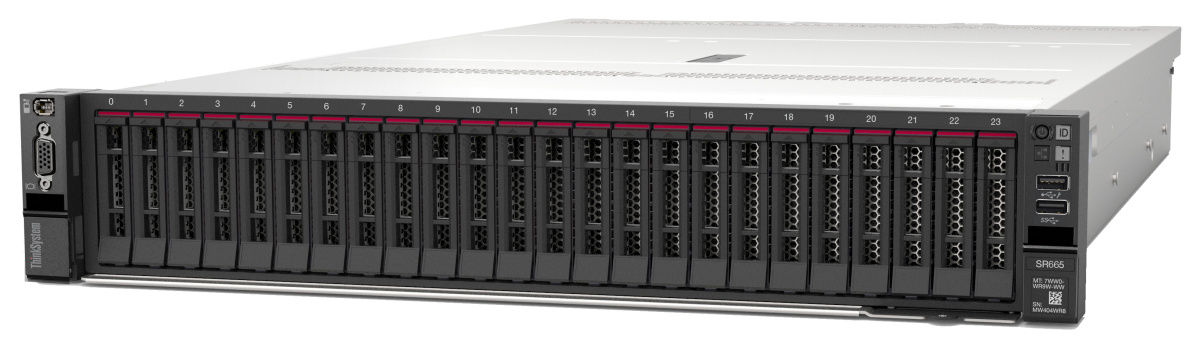

ThinkSystem SR665 Rack Server
Features
Unprecedented performance
The ThinkSystem SR665 delivers the next era of solution performance for software-defined workloads, Big Data, VDI, and Databases to match modern data centers’ demands for ever-expanding capability and performance. Maximize server utilization and decrease network bottlenecks with 128 processor cores from two AMD EPYC™ CPUs, class-leading memory speed and 128 PCIe 4.0 lanes.
Adaptive design
Cutting edge storage configurations, support for multiple GPUs, and up to 8 PCIe 4.0 slots allows the ThinkSystem SR665 to adapt to a wide range of enterprise workloads. Thoughtful design ensures that whether the system is deployed for use in database, big data & analytics, VDI, or HPC/AI solutions, it will provide high levels of reliable performance in enterprise data center environments.
Innovative management
The ThinkSystem SR665 utilizes a combination of Lenovo XClarity management, ThinkShield security features, and Lenovo Services to help make the deployment, management, and servicing of the system simple and secure.
XClarity Controller utilizes a dedicated management engine installed in the system that in tandem with XClarity Administrator enables a data-driven, centralized view of data center operations.
Tech Specs
| Form Factor | 2U rack server |
|---|---|
| Processors | Up to two (2) AMD EPYC™ 7002 Generation Processors, up to 64C, 280W |
| Memory | 32x DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at 3200MHz |
| Drive Bays | Up to 20x 3.5-inch or 40x 2.5-inch drives; Maximum of 32x NVMe drives with 1:2 connection |
| Expansion Slots | Up to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot |
| GPU | Up to 8x single-width GPUs or 3x double-width GPUs |
| Network Interface | OCP 3.0 mezz adapter, PCIe adapters |
| Power | Dual redundant PSUs (up to 1800W Platinum) |
| Ports | Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional) Rear: 3x USB 3.1, 1x Serial port (optional), 1x RJ-45 (management) |
| Systems Management | Lenovo XClarity Controller |
| OS Support | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi |
| Limited Warranty | 1- and 3-year customer replaceable unit and onsite services, next business day 9×5, optional service upgrades |
