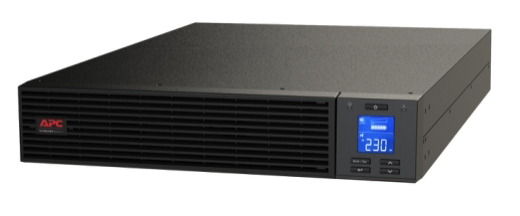

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signaling RS-232 cable, CD with software, Qty 1 – DC Cable, USB cable, User Manual
| Weight | 79 kg |
|---|---|
| Color | |
| Max Configurable Power (Watts) | 6.0kWatts / 6.0kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double Conversion Online |
| Waveform type | Sine wave |
| Bypass | Internal Bypass (Automatic and Manual) |
| Input frequency | 40 – 70 Hz |
| Input voltage range for main operations | 176 – 300V |
| Input voltage adjustable range for mains operation | 110 – 300 (half load)V |
| Efficiency at Full Load | 94.0 % |
| Other Input Voltages | 220, 240 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 3hour(s) |
| Battery Charge Power (Watts) | 517Watts |
| Extendable Run Time | 1 |
| Battery Volt-Amp-Hour Capacity | 1555 |
| Interface Port(s) | DB-9 RS-232, Intelligent Smart Slot, USB |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge energy rating | 600Joules |
