Description

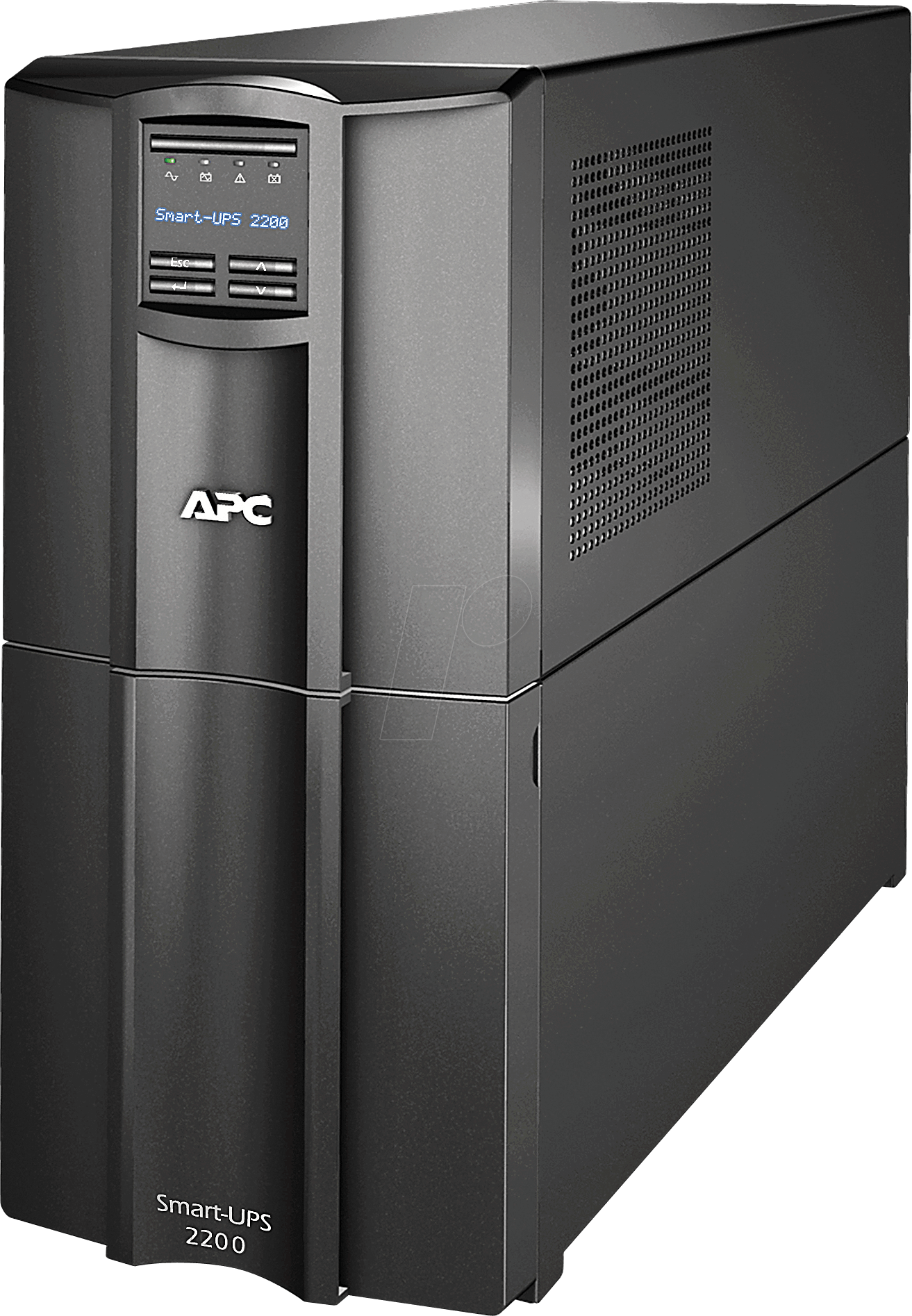

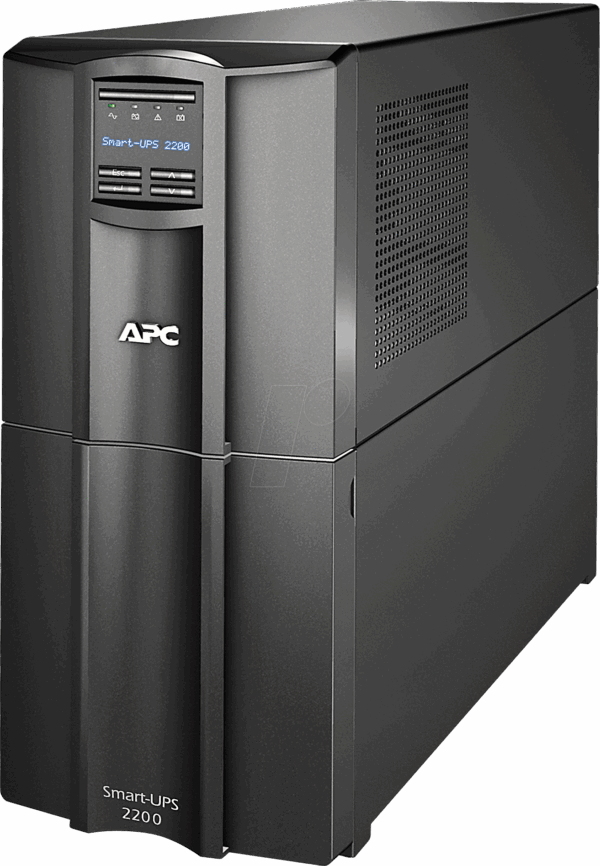

APC Smart-UPS 2200VA LCD 230V with SmartConnect
-
Intelligent and efficient network power protection from entry-level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs, and other …
-
Includes: USB cable
APC Smart-UPS 2200VA LCD 230V with SmartConnect
Key Features
- Output power capacity – 1.98kWatts / 2.2kVA
- Output Connections
(1) IEC 320 C19 (Battery Backup)(2) IEC Jumpers (Battery Backup)(8) IEC 320 C13 (Battery Backup)
- Nominal Output Voltage – 230V
- Nominal Input Voltage – 230V
- Input Connections –
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Additional information
| Weight | 61.9 kg |
|---|---|
| Color | |
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
| Output Voltage Note | Configurable for 220: 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
| Other Output Voltages | 220, 240 |
| Topology | Line Interactive |
| Waveform type | Sine wave |
| Transfer Time | 6ms typical : 10ms maximum |
| Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input voltage range for main operations | 160 – 286V |
| Input voltage adjustable range for mains operation | 151 – 302V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3hour(s) |
| Replacement Battery | Replaceable |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 260Watts |
| Battery Volt-Amp-Hour Capacity | 783 |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge energy rating | 365Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
