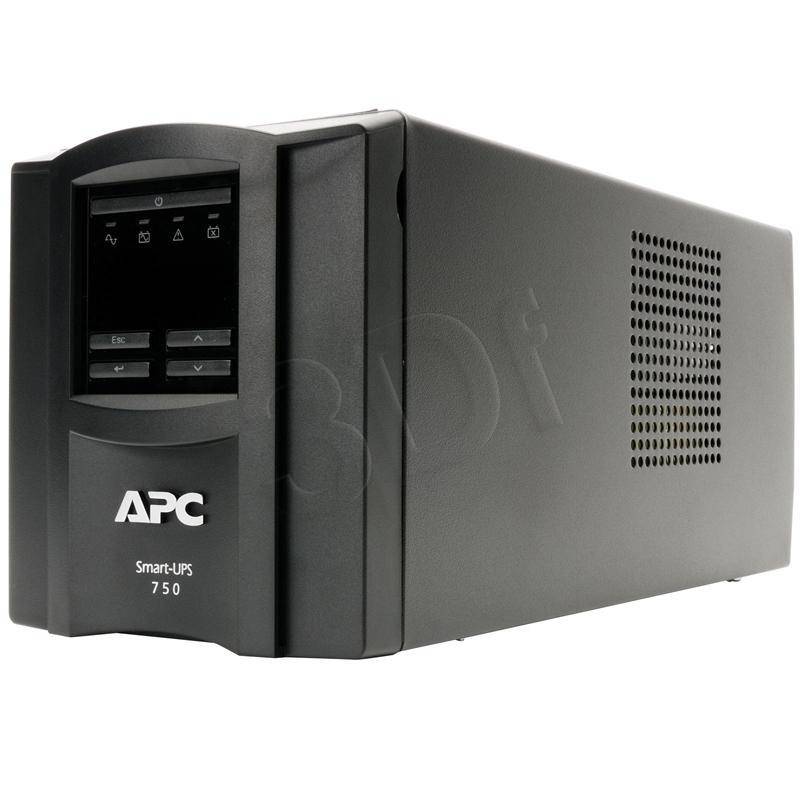

APC Smart-UPS 750VA LCD 230V with SmartConnect

Key Features

  • Output power capacity – 500Watts / 750VA
  • Output Connections
    (6) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Nominal Output Voltage – 230V
  • Nominal Input Voltage – 230V
  • Input Connections – IEC-320 C14
  • Cord Length – 1.83meters
Compare

Share this product

Description

APC Smart-UPS 750VA LCD 230V with SmartConnect

  • Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …

  • Includes: USB cable

Brand

APC

Additional information

Weight 14.23 kg
Color

Max Configurable Power (Watts)

500Watts / 750VA

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

Transfer Time

6ms typical : 10ms maximum

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

160 – 280V

Input voltage adjustable range for mains operation

151 – 302V

Number of Power Cords

1

Other Input Voltages

220, 240

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

Replaceable

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

49Watts

Battery Volt-Amp-Hour Capacity

146

Interface Port(s)

SmartSlot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Available SmartSlot™ Interface Quantity

1

Surge energy rating

540Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
