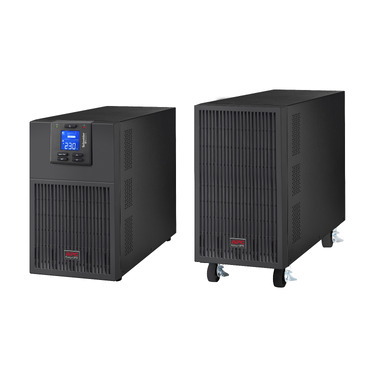

APC Easy UPS On-Line SRV Ext. Runtime 10000VA 230V with External Battery Pack

Key Features

  • Output power capacity – 10.0kWatts / 10.0kVA
  • Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
  • Nominal Output Voltage – 230V
  • Nominal Input Voltage – 230V
  • Input Connections
    Hard Wire 3 wire (1PH+N+G)
Compare

Share this product

Description

APC Easy UPS On-Line SRV Ext. Runtime 10000VA 230V with External Battery Pack

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

  • Includes: Basic UPS signalling RS-232 cable, CD with software, Qty 1 – DC Cable, USB cable, User Manual

Brand

APC

Additional information

Weight 82.5 kg
Color

Max Configurable Power (Watts)

10.0kWatts / 10.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Bypass

Internal Bypass (Automatic and Manual)

Input frequency

40 – 70 Hz

Input voltage range for main operations

176 – 300V

Input voltage adjustable range for mains operation

110 – 300 (half load)V

Efficiency at Full Load

94.0 %

Other Input Voltages

220, 240

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Battery Charge Power (Watts)

502Watts

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

1512

Interface Port(s)

DB-9 RS-232, Intelligent Smart Slot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge energy rating

600Joules
