Description

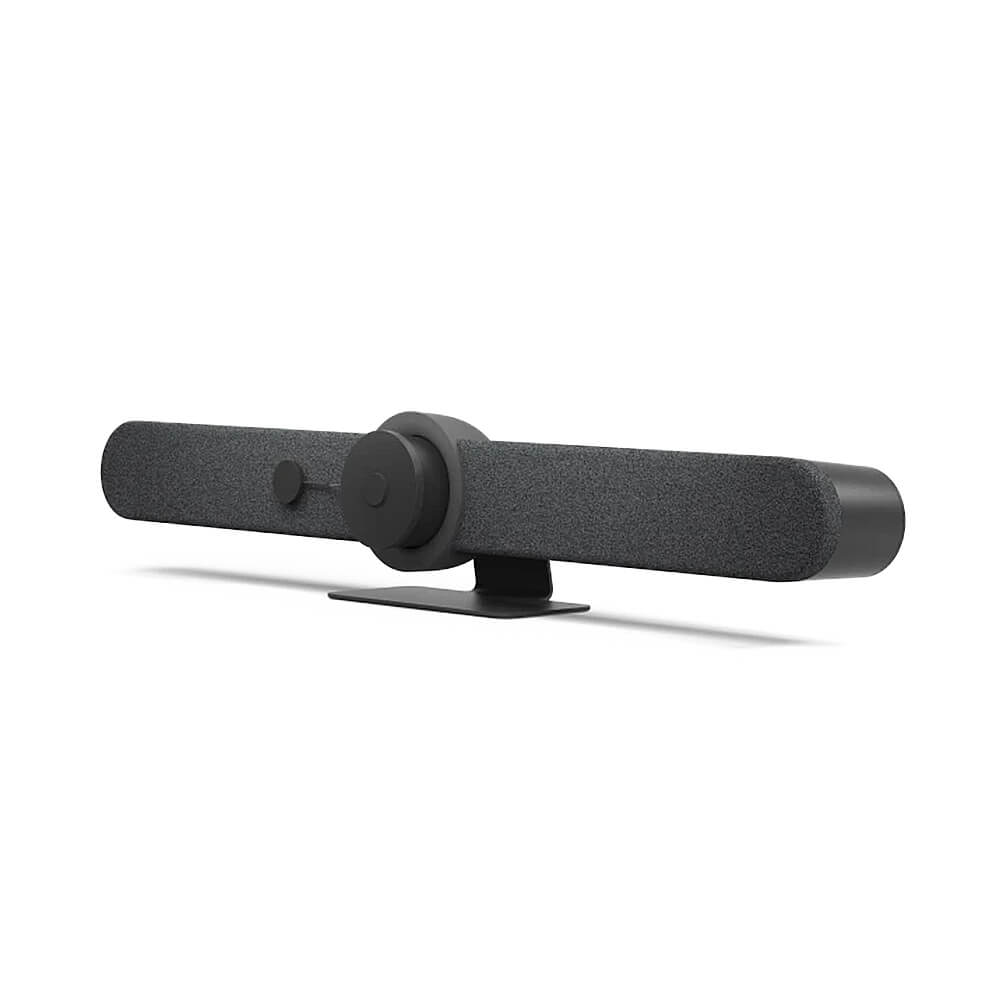

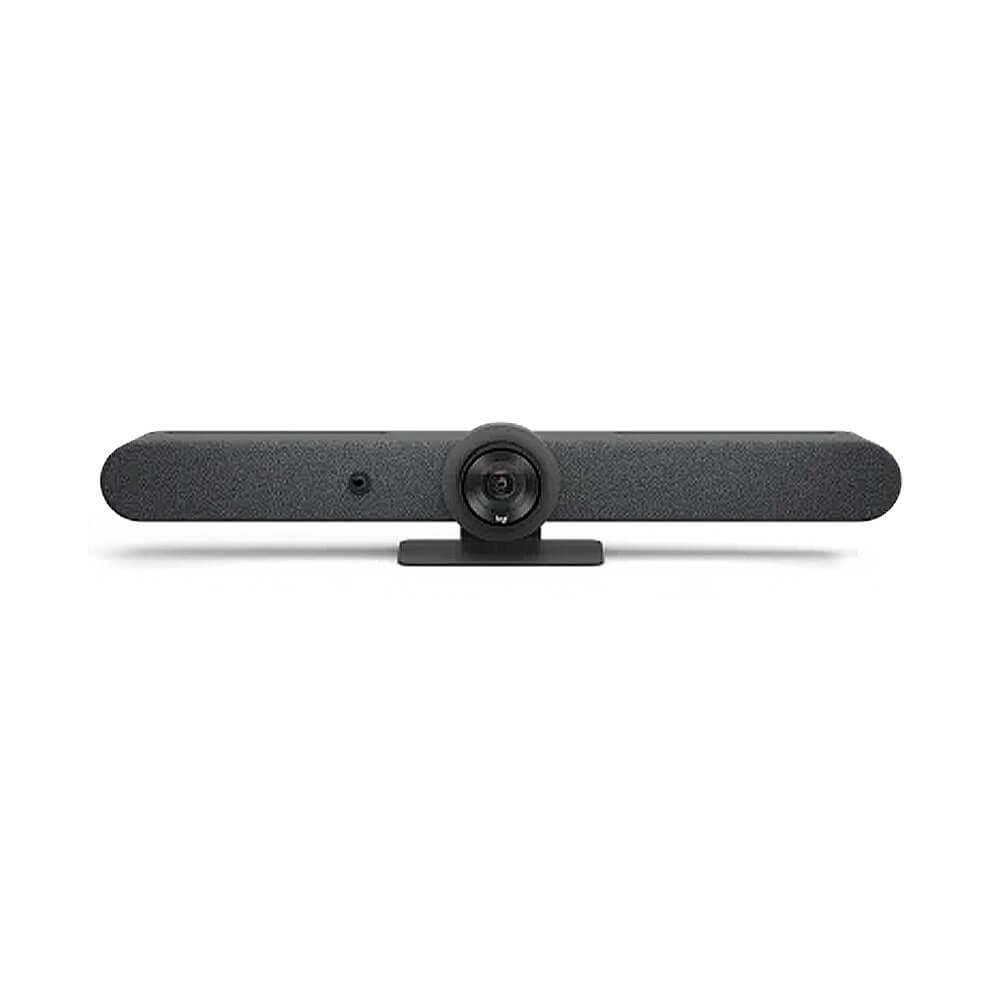

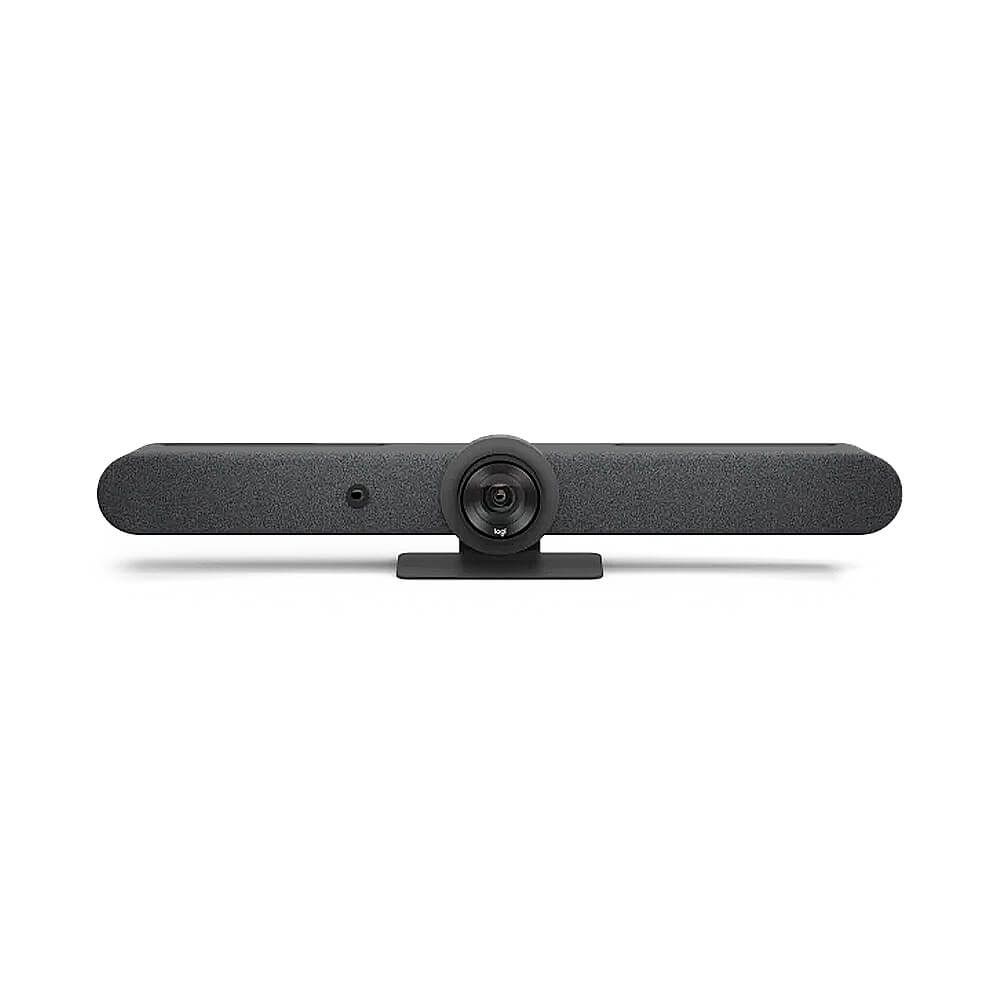

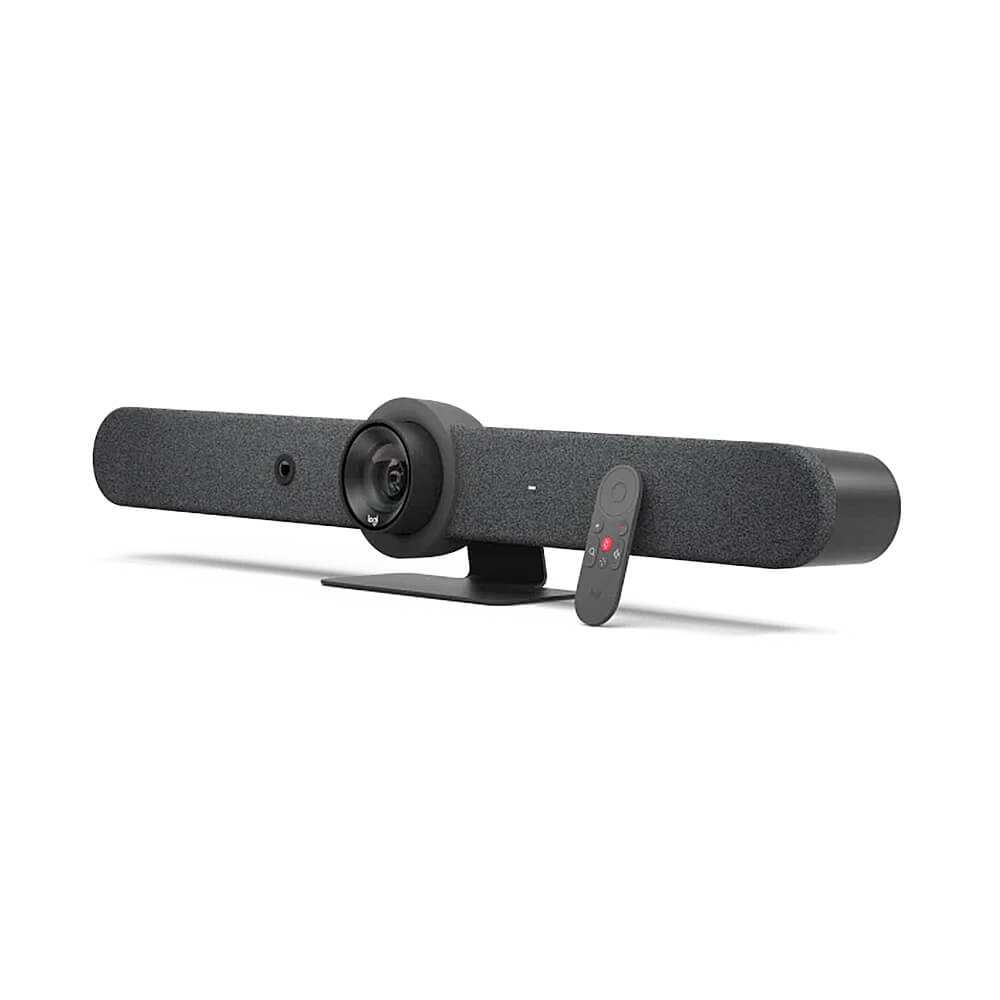

Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.
Dimensions
Height: 6.46 in (164 mm)
Width: 2.99 ft (910 mm)
Depth: 5.14 in (130.5 mm)
Lens Depth: 1.13 in (28.8 mm)
Weight: 15.6 lbs (7.08 kg)
Technical Specifications
Certifications & Compatibility
General Specifications
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm / 2.7 in
- Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz < 2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 23 ft (7m)
- Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 4.9 ft (1 m)
- HDMI 1.4 Cable: 6.5 ft (2 m)
- USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity: Logitech Strong USB Cable [32.81 ft (10 m), 65.6 ft (25 m), 147.64 ft (45 m)]

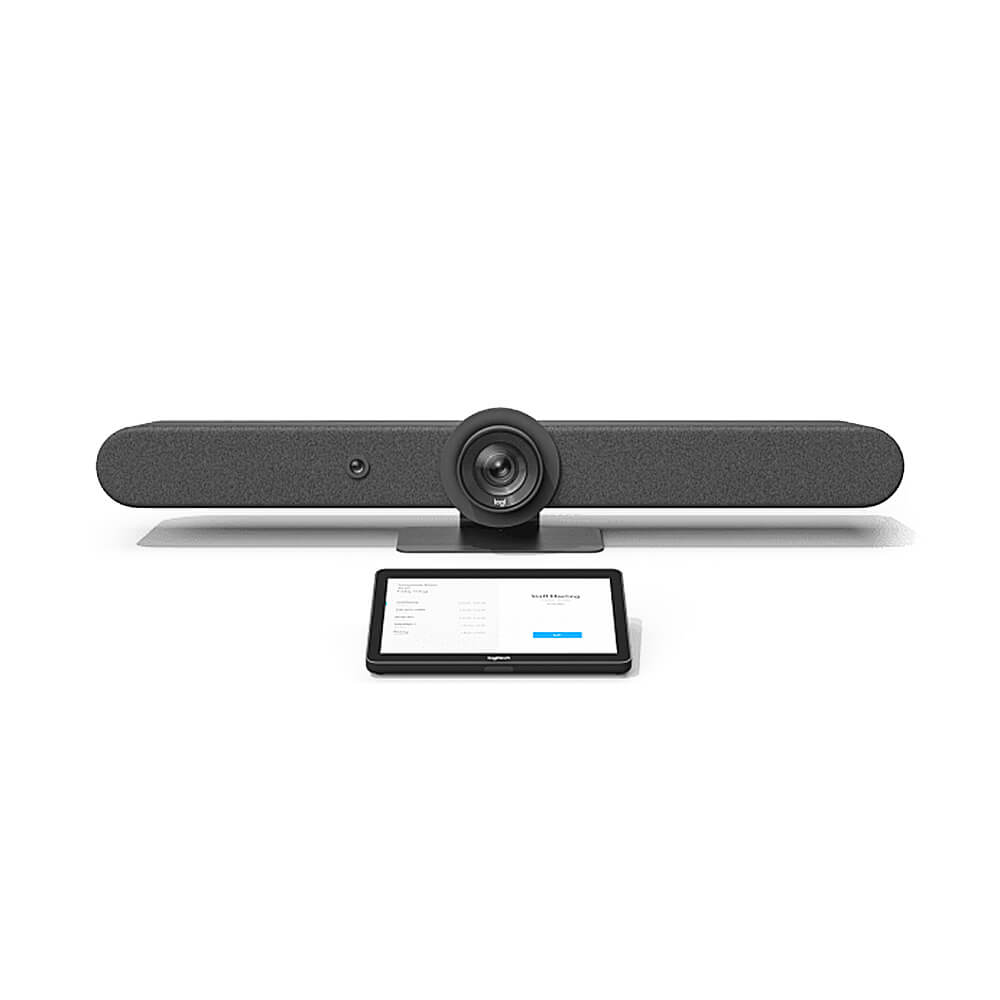

- Touch Controller: Logitech Tap and Tap IP
