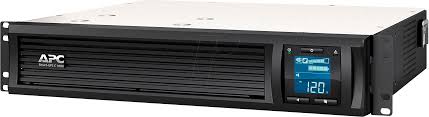

APC Smart-UPS C 1000VA LCD 230V With SmartConnect

Key Features

  • Output power capacity – 600Watts / 1.0kVA
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Nominal Output Voltage – 230V
  • Nominal Input Voltage – 230V
  • Input Connections – IEC-320 C14


APC Smart-UPS C 1000VA LCD 230V with SmartConnect

  • Intelligent and efficient network power protection from entry-level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …

  • Includes: Power Cords, USB cable

Additional information

Weight 19.55 kg

Max Configurable Power (Watts)

600Watts / 1.0kVA

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240


Line Interactive

Waveform type

Sine wave

Transfer Time

6ms typical: 10ms maximum

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

180 – 287V

Input voltage adjustable range for mains operation

170 – 300V

Other Input Voltages

220, 240

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time


Replacement Battery


Expected Battery Life (years)

3 – 5

RBC Quantity


Battery Charge Power (Watts)


Battery Volt-Amp-Hour Capacity


Interface Port(s)

RJ-45 Serial, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery: distinctive low battery alarm: configurable delays

Emergency Power Off (EPO)

Surge energy rating



Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
